USMTransitionInstance

Module: SMSystem

#include <SMTransitionInstance.h>

Inherits from USMNodeInstance, UObject

Description

class USMTransitionInstance;

Connect states and define conditions to signal when the active state should end and the next state begin.

Public Functions

	Name
	USMTransitionInstance()
bool	CanEnterTransition() const
void	OnTransitionEntered()
void	OnTransitionInitialized()
void	OnTransitionShutdown()
USMStateInstance_Base *	GetPreviousStateInstance() const
USMStateInstance_Base *	GetNextStateInstance() const
USMStateInstance_Base *	GetSourceStateForActiveTransition() const
USMStateInstance_Base *	GetDestinationStateForActiveTransition() const
void	GetTransitionInfo(FSMTransitionInfo & Transition) const
const FDateTime &	GetServerTimestamp() const
bool	DoesTransitionPass() const
bool	IsTransitionFromAnyState() const
bool	IsTransitionFromLinkState() const
bool	EvaluateFromManuallyBoundEvent()
void	GetAllTransitionStackInstances(TArray< USMTransitionInstance * > & TransitionStackInstances) const
USMTransitionInstance *	GetTransitionInStack(int32 Index) const
USMTransitionInstance *	GetTransitionInStackByClass(TSubclassOf< USMTransitionInstance > TransitionClass, bool bIncludeChildren =false) const
USMTransitionInstance *	GetStackOwnerInstance() const

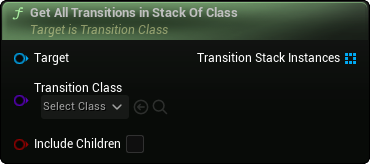

void	GetAllTransitionsInStackOfClass(TSubclassOf< USMTransitionInstance > TransitionClass, TArray< USMTransitionInstance * > & TransitionStackInstances, bool bIncludeChildren =false) const

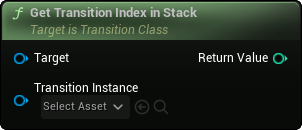

int32	GetTransitionIndexInStack(USMTransitionInstance * TransitionInstance) const
int32	GetTransitionStackCount() const
const FSMTransitionConnectionValidator &	GetAllowedConnections() const
bool	ShouldHideIconBackground() const
bool	IsIconHidden() const
bool	ShouldApplyRotationToIcon() const
float	GetIconLocationPercentage() const
void	SetCanEvaluate(const bool bValue)
bool	GetCanEvaluate() const
int32	GetPriorityOrder() const
void	SetPriorityOrder(const int32 Value)
bool	GetRunParallel() const
void	SetRunParallel(const bool bValue)
bool	GetEvalIfNextStateActive() const
void	SetEvalIfNextStateActive(const bool bValue)
bool	GetCanEvaluateFromEvent() const
void	SetCanEvaluateFromEvent(const bool bValue)
bool	GetCanEvalWithStartState() const
void	SetCanEvalWithStartState(const bool bValue)
FName	GetAutoPlaceTransitionIfRulesPassPropertyName()

Protected Functions

	Name
virtual bool	CanEnterTransition_Implementation() const
virtual void	OnTransitionEntered_Implementation()
virtual void	OnTransitionInitialized_Implementation()
virtual void	OnTransitionShutdown_Implementation()

Public Attributes

	Name
FOnTransitionEnteredSignature	OnTransitionEnteredEvent

Protected Attributes

	Name
FSMTransitionConnectionValidator	ConnectionRules
uint8	bAutoPlaceTransitionIfRulesPass
uint8	bApplyRotationToCustomIcon
uint8	bShowBackgroundOnCustomIcon
uint8	bHideIcon
float	IconLocationPercentage

Friends

	Name
class	USMGraphNode_TransitionEdge

Additional inherited members

Public Functions inherited from USMNodeInstance

	Name
	USMNodeInstance()
virtual void	Serialize(FArchive & Ar) override
virtual UWorld *	GetWorld() const override
virtual void	BeginDestroy() override
virtual bool	IsSupportedForNetworking() const override
virtual void	GetLifetimeReplicatedProps(TArray< FLifetimeProperty > & OutLifetimeProps) const override
virtual int32	GetFunctionCallspace(UFunction * Function, FFrame * Stack) override
virtual bool	CallRemoteFunction(UFunction * Function, void * Parms, FOutParmRec * OutParms, FFrame * Stack) override
virtual UObject *	GetContext() const override
virtual void	NativeInitialize()
virtual void	NativeShutdown()
void	OnRootStateMachineStart()
void	OnRootStateMachineStop()
void	RunConstructionScript()
bool	ShouldSkipNativeEditorConstructionScripts() const
USMInstance *	GetStateMachineInstance(bool bTopMostInstance =false) const
void	SetOwningNode(FSMNode_Base * Node, bool bInIsEditorExecution =false)
const FSMNode_Base *	GetOwningNode() const
T *	GetOwningNodeAs() const
virtual const FSMNode_Base *	GetOwningNodeContainer() const
USMStateMachineInstance *	GetOwningStateMachineNodeInstance() const
TScriptInterface< ISMStateMachineNetworkedInterface >	GetNetworkInterface() const
virtual float	GetTimeInState() const
virtual bool	IsInEndState() const
virtual bool	HasUpdated() const
bool	IsActive() const
const FString &	GetNodeName() const
const FGuid &	GetGuid() const
UTexture2D *	GetNodeIcon() const
FVector2D	GetNodeIconSize() const
FLinearColor	GetNodeIconTintColor() const
void	EvaluateGraphProperties(bool bTargetOnly =false, ESMGraphPropertyDirection Direction =ESMGraphPropertyDirection::Input)
const FGuid &	GetTemplateGuid() const
const FVector2D &	GetNodePosition() const
bool	IsInitialized() const
bool	IsInitializedAndReadyForInputEvents() const
bool	IsReplicationEnabled() const
void	SetEnableReplication(bool bNewValue)
FSMGraphProperty *	FindExposedPropertyOverrideByName(const FName & VariableName) const
virtual void	PostEditChangeProperty(FPropertyChangedEvent & PropertyChangedEvent) override
bool	WasArrayPropertyModified(const FName & PropertyName) const
bool	IsNodePinChanging() const
void	SetDisplayName(FName NewDisplayName)
void	SetNodeDescriptionText(FText NewDescription)
FText	GetNodeDescriptionText() const
void	SetNodeColor(FLinearColor NewColor)
void	SetUseCustomColor(bool bValue)
void	SetUseCustomIcon(bool bValue)
void	SetVariableReadOnly(FName VariableName, bool bSetIsReadOnly)
void	SetVariableHidden(FName VariableName, bool bSetHidden)
bool	IsEditorExecution() const
void	WithExecutionEnvironment(ESMExecutionEnvironment & ExecutionEnvironment)
TScriptInterface< ISMEditorGraphNodeInterface >	GetOwningEditorGraphNode() const
void	K2_TryGetOwningEditorGraphNode(TScriptInterface< ISMEditorGraphNodeInterface > & EditorNode, ESMValidEditorNode & IsValidNode) const
bool	IsInitializationThreadSafe() const
void	ResetVariables()
bool	GetResetVariablesOnInitialize() const
bool	HasCustomColor() const
const FLinearColor &	GetNodeColor() const
const FSMNodeDescription &	GetNodeDescription() const
bool	HasCustomIcon() const
FString	GetNodeDisplayName() const
void	SetTemplateGuid(const FGuid & NewTemplateGuid)
void	SetIsThreadSafe(bool bNewValue)
void	SetIsEditorThreadSafe(const bool bNewValue)
bool	GetIsEditorThreadSafe() const
TEnumAsByte< ESMNodeInput::Type >	GetInputType() const
int32	GetInputPriority() const
bool	GetBlockInput() const
UInputComponent *	GetInputComponent() const
FName	GetConstructionScriptFunctionName()
FName	GetNodeDescriptionPropertyName()
FName	GetHideFromDropDownIfRulesFailPropertyName()

Protected Functions inherited from USMNodeInstance

	Name
virtual void	OnRootStateMachineStart_Implementation()
virtual void	OnRootStateMachineStop_Implementation()
void	ConstructionScript()
FSMGraphProperty *	FindOrAddExposedPropertyOverrideByName(const FName & VariableName)
void	OnPreCompileValidate(USMCompilerLog * CompilerLog) const
virtual void	OnPreCompileValidate_Implementation(USMCompilerLog * CompilerLog) const
virtual void	ConstructionScript_Implementation()
virtual UTexture2D *	GetNodeIcon_Implementation() const
virtual FVector2D	GetNodeIconSize_Implementation() const
virtual FLinearColor	GetNodeIconTintColor_Implementation() const
void	EnableInput() Input.
void	DisableInput()
void	OnContextPawnControllerChanged(APawn * Pawn, AController * NewController)

Public Attributes inherited from USMNodeInstance

	Name
TArray< FSMGraphProperty >	ExposedPropertyOverrides
uint8	bEvalDefaultProperties
uint8	bAutoEvalExposedProperties

Protected Attributes inherited from USMNodeInstance

	Name
bool	bSkipNativeEditorConstructionScripts
TObjectPtr< UTexture2D >	NodeIcon
FVector2D	NodeIconSize
FLinearColor	NodeIconTintColor
bool	bResetVariablesOnInitialize
FSMNodeDescription	NodeDescription
FLinearColor	NodeColor
uint8	bDisplayCustomIcon
uint8	bUseCustomColors
uint8	bHideFromDropDownIfRulesFail
TObjectPtr< UInputComponent >	InputComponent
TEnumAsByte< ESMNodeInput::Type >	AutoReceiveInput
int32	InputPriority
uint8	bBlockInput

Friends inherited from USMNodeInstance

	Name
class	USMGraphNode_StateNode
struct	FSMNode_Base(FSMNode_Base )
class	USMGraphNode_Base
class	USMGraphK2Node_PropertyNode_Base
class	FSMNodeInstanceCustomization

Public Functions Documentation

function USMTransitionInstance

USMTransitionInstance()

---

function CanEnterTransition

bool CanEnterTransition() const

Conditional check to determine if the transition can be taken.

---

function OnTransitionEntered

void OnTransitionEntered()

Called when this transition has been evaluated and taken.

---

function OnTransitionInitialized

void OnTransitionInitialized()

Called after the state leading to this node is initialized but before OnStateBegin.

---

function OnTransitionShutdown

void OnTransitionShutdown()

Called after the state leading to this node has run OnStateEnd but before it has called its shutdown sequence.

---

function GetPreviousStateInstance

USMStateInstance_Base * GetPreviousStateInstance() const

The state this transition leaves from.

---

function GetNextStateInstance

USMStateInstance_Base * GetNextStateInstance() const

The state this transition leads to.

---

function GetSourceStateForActiveTransition

USMStateInstance_Base * GetSourceStateForActiveTransition() const

Return the state that last triggered this transition. This may be a state prior to a transition conduit. This will be valid during OnTransitionEntered().

Return: The first state to trigger this transition chain or null.

---

function GetDestinationStateForActiveTransition

USMStateInstance_Base * GetDestinationStateForActiveTransition() const

Return the destination state we are transitioning to or last transitioned to. This may be a state after a transition conduit. This will be valid during OnTransitionEntered().

Return: The final state after the transition chain or null.

---

function GetTransitionInfo

void GetTransitionInfo(
    FSMTransitionInfo & Transition
) const

Return read only information about the owning transition.

---

function GetServerTimestamp

const FDateTime & GetServerTimestamp() const

Return the last server timestamp of this transition. If not networked this won't be set.

---

function DoesTransitionPass

bool DoesTransitionPass() const

Evaluates the transition's local graph which usually calls CanEnterTransition() of this instance. This is equivalent to the state machine determining if a transition succeeds.

This is best used from an external caller when checking a transition result.

Return: The transition result.

Warning:

Do NOT call this from within CanEnterTransition() of the instance or the local graph or you may trigger an infinite loop.

---

function IsTransitionFromAnyState

bool IsTransitionFromAnyState() const

If the transition was created by an Any State.

Return: True if the transition was copied from an Any State.

---

function IsTransitionFromLinkState

bool IsTransitionFromLinkState() const

If the transition was created by a Link State.

Return: True if the transition was copied from a Link State.

---

function EvaluateFromManuallyBoundEvent

bool EvaluateFromManuallyBoundEvent()

Efficiently evaluate and take the transition immediately. If the transition's CanEnterTransition method returns true the entire transition chain this transition is part of will be evaluated and taken. Super state and parallel transitions will not evaluate when this method is called.

Steps this method performs:

1. Enables SetCanEvaluate for this transition.
2. Calls EvaluateAndTakeTransitionChain from the owning state machine instance.
3. Sets SetCanEvaluate back to the original value.

Use at the end of execution from manually bound events.

Return: True if the transition was taken.

---

function GetAllTransitionStackInstances

void GetAllTransitionStackInstances(
    TArray< USMTransitionInstance * > & TransitionStackInstances
) const

Retrieve all transition instances in the transition stack.

Parameters:

TransitionStackInstances

[Out] Transition stack instances in their correct order.

---

function GetTransitionInStack

USMTransitionInstance * GetTransitionInStack(
    int32 Index
) const

Retrieve a transition instance from within the transition stack.

Parameters:

Index

the index of the array.

Return: the transition if the index is valid.

---

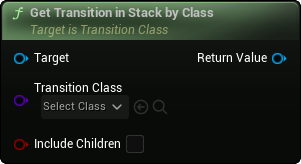

function GetTransitionInStackByClass

USMTransitionInstance * GetTransitionInStackByClass(
    TSubclassOf< USMTransitionInstance > TransitionClass,
    bool bIncludeChildren =false
) const

Retrieve the first stack instance of a given class.

Parameters:

TransitionClass

The transition class to search for.

bIncludeChildren

If children of the given class can be included.

Return: the first transition that matches the class.

---

function GetStackOwnerInstance

USMTransitionInstance * GetStackOwnerInstance() const

Retrieve the owning node instance of a transition stack. If this is called from the main node instance it will return itself.

---

function GetAllTransitionsInStackOfClass

void GetAllTransitionsInStackOfClass(
    TSubclassOf< USMTransitionInstance > TransitionClass,
    TArray< USMTransitionInstance * > & TransitionStackInstances,
    bool bIncludeChildren =false
) const

Retrieve all transitions that match the given class.

Parameters:

TransitionClass

The transition class to search for.

bIncludeChildren

If children of the given class can be included.

TransitionStackInstances

[Out] Transition stack instances matching the given class.

---

function GetTransitionIndexInStack

int32 GetTransitionIndexInStack(
    USMTransitionInstance * TransitionInstance
) const

Retrieve the index of a transition stack instance. O(n).

Parameters:

TransitionInstance

The transition instance to lookup in the stack.

Return: The index of the transition in the stack. -1 if not found or is the base transition instance.

---

function GetTransitionStackCount

int32 GetTransitionStackCount() const

The total number of transitions in the transition stack.

---

function GetAllowedConnections

inline const FSMTransitionConnectionValidator & GetAllowedConnections() const

---

function ShouldHideIconBackground

inline bool ShouldHideIconBackground() const

---

function IsIconHidden

inline bool IsIconHidden() const

---

function ShouldApplyRotationToIcon

inline bool ShouldApplyRotationToIcon() const

---

function GetIconLocationPercentage

inline float GetIconLocationPercentage() const

---

function SetCanEvaluate

void SetCanEvaluate(
    const bool bValue
)

Sets whether this node is allowed to evaluate or not.

---

function GetCanEvaluate

bool GetCanEvaluate() const

Check whether this transition is allowed to evaluate.

---

function GetPriorityOrder

int32 GetPriorityOrder() const

Public getter for PriorityOrder.

---

function SetPriorityOrder

void SetPriorityOrder(
    const int32 Value
)

Public setter for PriorityOrder. Only valid from the editor construction script.

---

function GetRunParallel

bool GetRunParallel() const

Public getter for bRunParallel.

---

function SetRunParallel

void SetRunParallel(
    const bool bValue
)

Public setter for bRunParallel.

---

function GetEvalIfNextStateActive

bool GetEvalIfNextStateActive() const

Public getter for bEvalIfNextStateActive.

---

function SetEvalIfNextStateActive

void SetEvalIfNextStateActive(
    const bool bValue
)

Public setter for bEvalIfNextStateActive.

---

function GetCanEvaluateFromEvent

bool GetCanEvaluateFromEvent() const

Public getter for bCanEvaluateFromEvent.

---

function SetCanEvaluateFromEvent

void SetCanEvaluateFromEvent(
    const bool bValue
)

Public setter for bCanEvaluateFromEvent.

---

function GetCanEvalWithStartState

bool GetCanEvalWithStartState() const

Public getter for bCanEvalWithStartState.

---

function SetCanEvalWithStartState

void SetCanEvalWithStartState(
    const bool bValue
)

Public setter for bCanEvalWithStartState.

---

function GetAutoPlaceTransitionIfRulesPassPropertyName

static inline FName GetAutoPlaceTransitionIfRulesPassPropertyName()

---

Protected Functions Documentation

function CanEnterTransition_Implementation

inline virtual bool CanEnterTransition_Implementation() const

---

function OnTransitionEntered_Implementation

inline virtual void OnTransitionEntered_Implementation()

---

function OnTransitionInitialized_Implementation

inline virtual void OnTransitionInitialized_Implementation()

---

function OnTransitionShutdown_Implementation

inline virtual void OnTransitionShutdown_Implementation()

---

Public Attributes Documentation

variable OnTransitionEnteredEvent

FOnTransitionEnteredSignature OnTransitionEnteredEvent;

Called when this transition has been entered from the previous state.

---

Protected Attributes Documentation

variable ConnectionRules

FSMTransitionConnectionValidator ConnectionRules;

Define what types of connections are allowed. Default is all.

---

variable bAutoPlaceTransitionIfRulesPass

uint8 bAutoPlaceTransitionIfRulesPass;

Automatically place the transition when a connection rule passes.

---

variable bApplyRotationToCustomIcon

uint8 bApplyRotationToCustomIcon;

Apply rotation to the icon based on the transition's rotation. This only impacts custom icons on non-rerouted transitions.

---

variable bShowBackgroundOnCustomIcon

uint8 bShowBackgroundOnCustomIcon;

Allow the icon background brush to be displayed for custom icons.

---

variable bHideIcon

uint8 bHideIcon;

Completely hide the transition icon. If the connection is hovered or selected it will become visible.

---

variable IconLocationPercentage

float IconLocationPercentage;

Set the position of the icon along the connection.

---

Private Attributes Documentation

variable PriorityOrder

int32 PriorityOrder;

Lower number transitions will be evaluated first.

---

variable bRunParallel

uint8 bRunParallel;

If this transition evaluates to true it will not prevent the next transition in the priority sequence from being evaluated. This allows the possibility for multiple active states. Transitions from Conduit nodes are not supported.

---

variable bEvalIfNextStateActive

uint8 bEvalIfNextStateActive;

Should the transition evaluate if already connecting to an active state.

---

variable bCanEvaluate

uint8 bCanEvaluate;

If this transition is allowed to evaluate conditionally.

---

variable bCanEvaluateFromEvent

uint8 bCanEvaluateFromEvent;

If this transition can evaluate from auto-bound events.

---

variable bCanEvalWithStartState

uint8 bCanEvalWithStartState;

Setting to false forces this transition to never evaluate on the same tick as OnStateBegin. Only used if this transition's from state has bEvalTransitionsOnStart set to true.

---

Friends

friend USMGraphNode_TransitionEdge

friend class USMGraphNode_TransitionEdge(
    USMGraphNode_TransitionEdge
);

---
